Value stream mapping (VSM) is the X-ray of lean improvement: the entire order-to-delivery flow on one page, with waste made visible. "How do we draw a value stream map?" is one of the questions factory managers ask us most. Here is the method we use inside client factories.

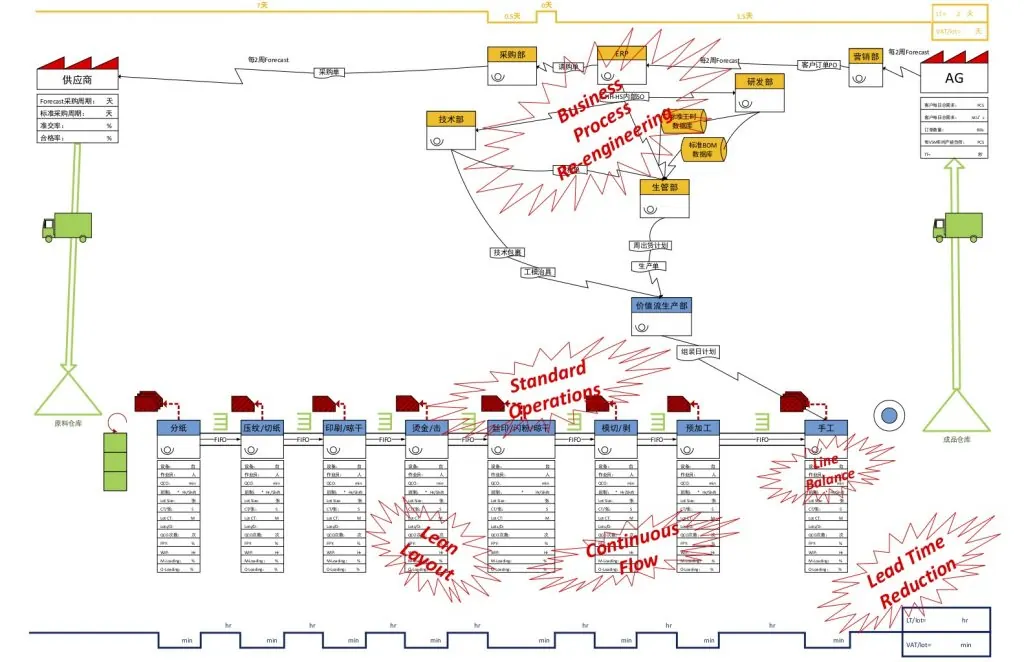

A value stream map uses a small set of symbols to show, at once, the material flow (how raw material becomes product) and the information flow (how orders drive each process). A timeline at the bottom separates time that creates value for the customer from time that is only waiting. The tool originates with Taiichi Ohno at Toyota.
1. Pick one product family — do not map the whole plant at once; choose the highest-volume or most representative family. 2. Go to gemba — walk the actual flow; never draw from memory in a meeting room. 3. Bring a stopwatch and paper — measured data beats the standard-time table every time.
Step 1: draw the customer first — demand volume, then compute takt time (available work time ÷ demand). Step 2: draw the main production processes left to right (process boxes). Step 3: add material flow — inventory points, WIP quantities, transfer methods. Step 4: draw the information flow — how orders reach each process (production schedule or kanban pull). Step 5: collect data at each process: cycle time (CT), changeover time (C/O), first-pass yield, uptime, headcount. Step 6: draw the timeline — accumulate value-added time and non-value-added (waiting, inventory) time separately. Step 7: compute the value-added ratio = value-added time ÷ total lead time. Most factories find it under 5% on their first calculation — the other 95% is your opportunity.
Mistake 1: drawing in the office. "Close enough" data hides real waste. Mistake 2: chasing perfect symbols. The point of VSM is exposing problems, not producing art. Mistake 3: mapping only the current state. The current-state map finds waste; the future-state map is the improvement roadmap — the gap between them is your project list.
Break the future-state map into three to six improvement projects and land them one by one — that is RCG's project-based implementation approach. If you would like a consultant to lead your team through its first map and first projects, see our lean manufacturing consulting service.
